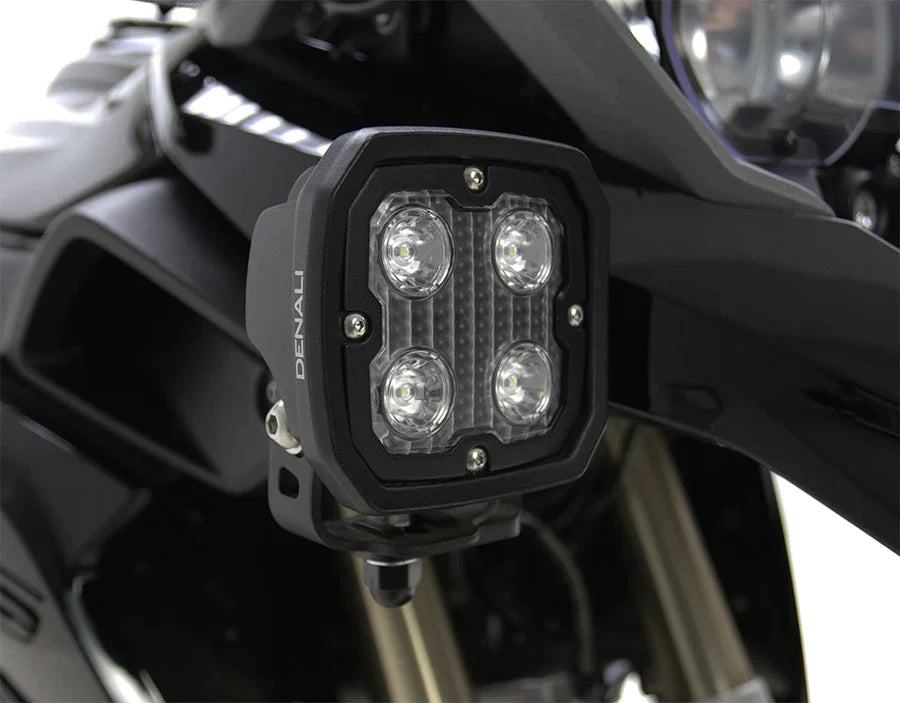

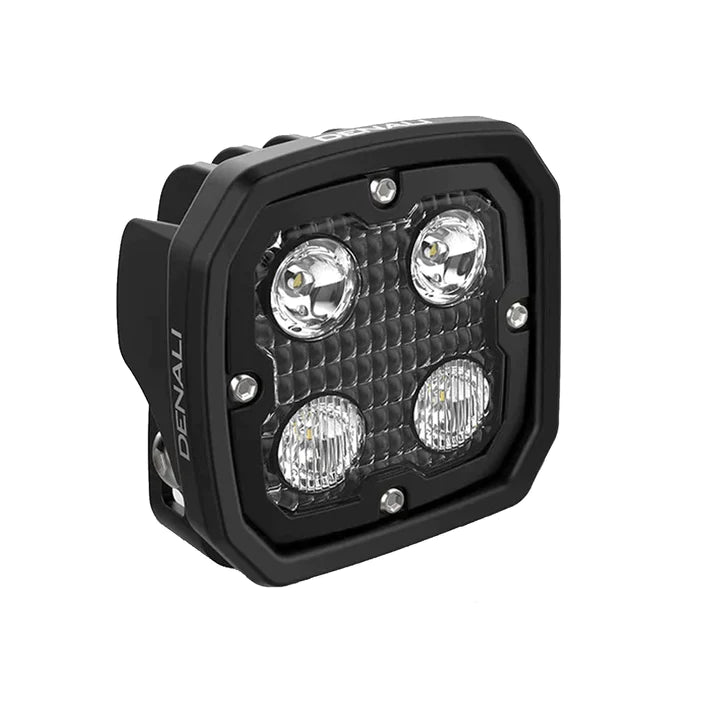

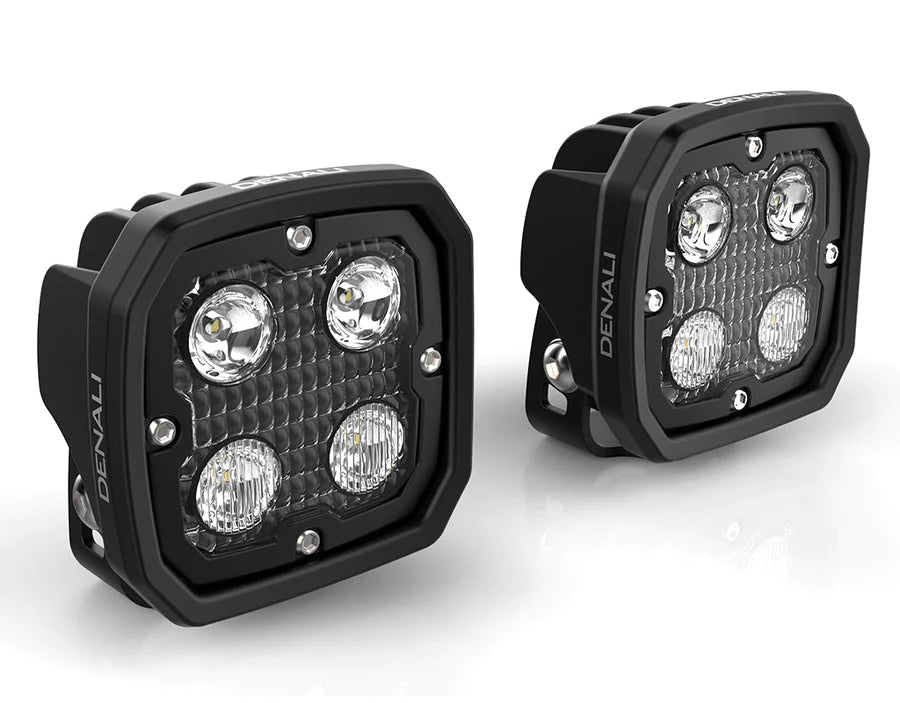

DENALI D4's are a beast. It is DENALI’s most powerful light packing a punch of 8750 lumens in a pair of aggressively styled housings. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included pair of spot lenses throws a massive beam of light 800 feet and carries an official E-Mark certification.
DENALI’s innovative DataDim™ Technology enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller (DNL.WHS.11000) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.
D4 Wiring Kit (optional) Features
NOTE: Not required when buying with a CANsmart controller

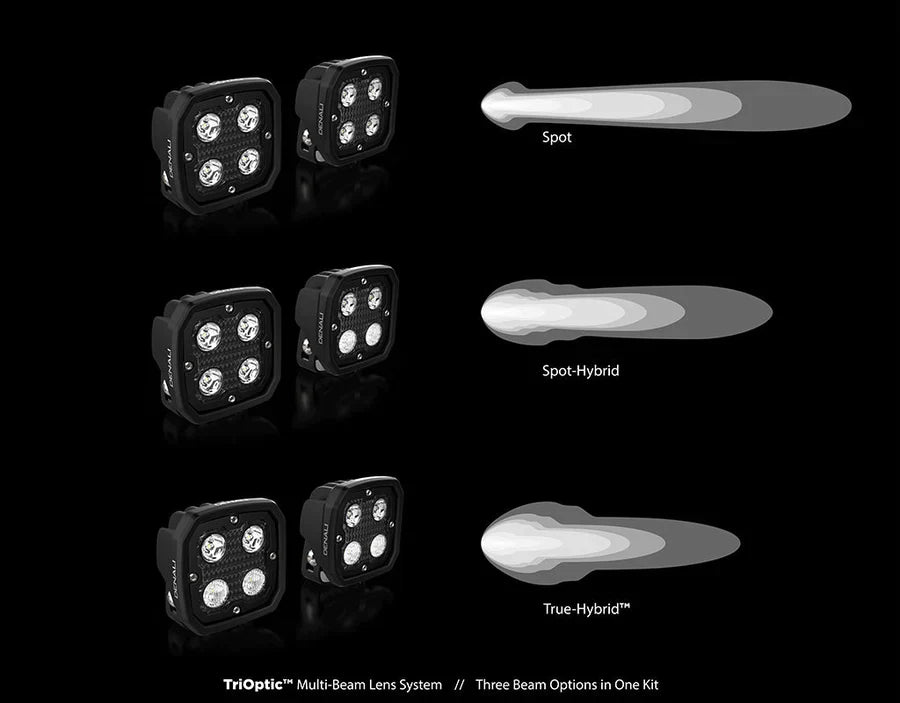

Comprehensive 9-piece LED light kit specifically designed for power sports applications High-Intensity Series Cree LEDs outputting 8760 lumens per kit TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one kit DataDim™ equipped light pods and harness allow plug-n-play connection to the DataDim™ dimming controller (SKU DNL.WHS.11000) Premium Powersports harness with waterproof switch and handlebar switch mount included DrySeal™ Submersible Waterproof light and switch housings can withstand the most extreme environments Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminium bezels. LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating Low profile mounting bracket with stainless steel hardware included Additional pair of E-Mark Approved flood lenses included Amber lenses available (sold separately) DNL.D4.10100
D4 Light Pods Kit (Pair)
LED’s: (8x) 10 Watt Cree XPL HI
Power Draw: 6.6 Amps

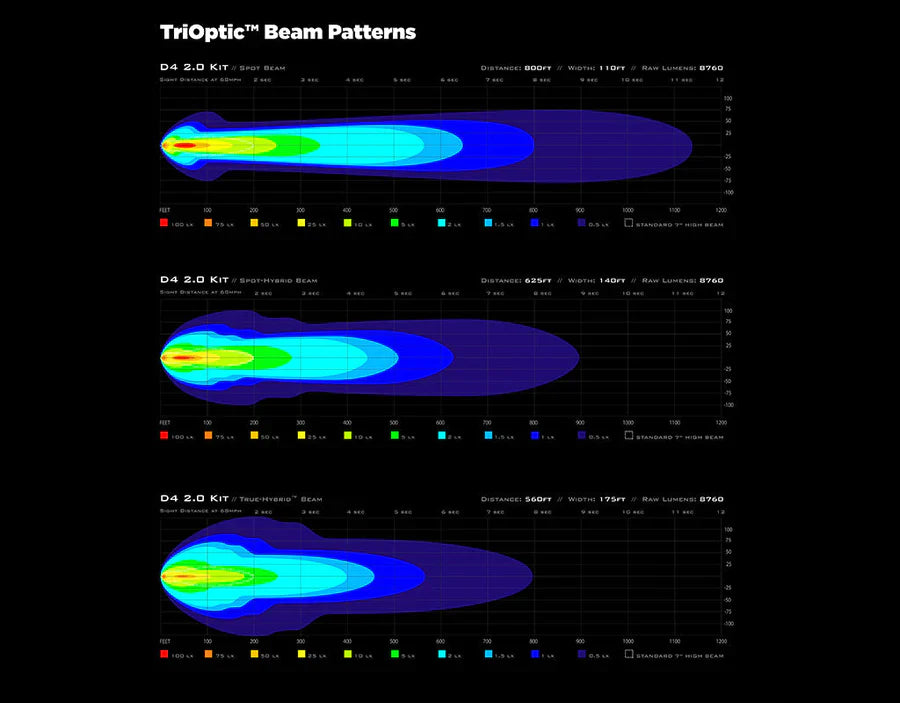

Beam Distance (Spot): 800 Feet
Beam Width (Spot): 110 Feet
Raw Lumens: 8760
Intensity: Single Intensity Harness
DataDim™ Compatible: Yes
Operating Voltage: 12 VDC

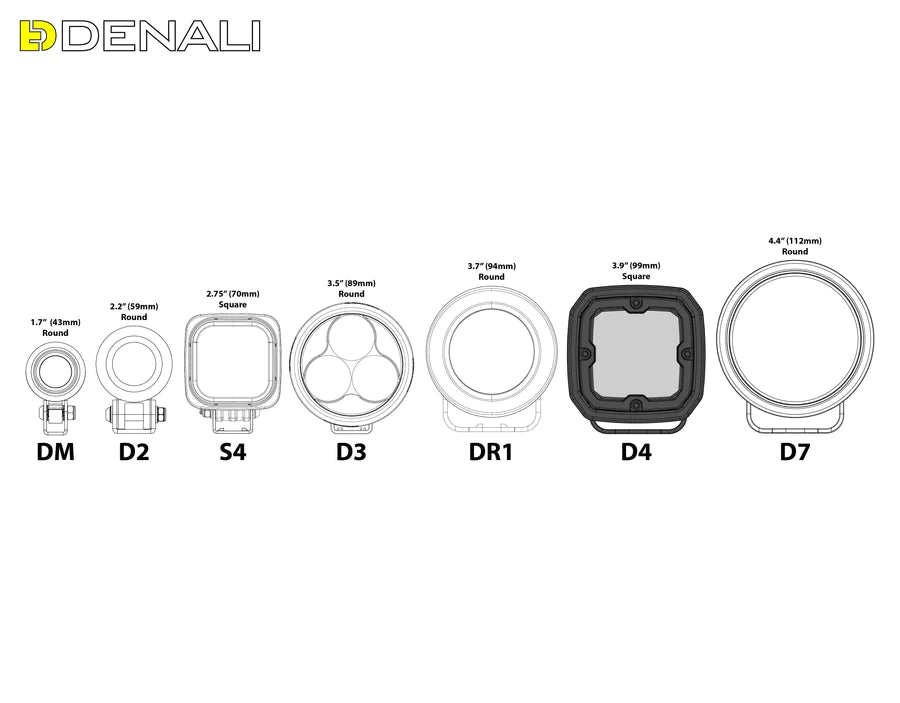

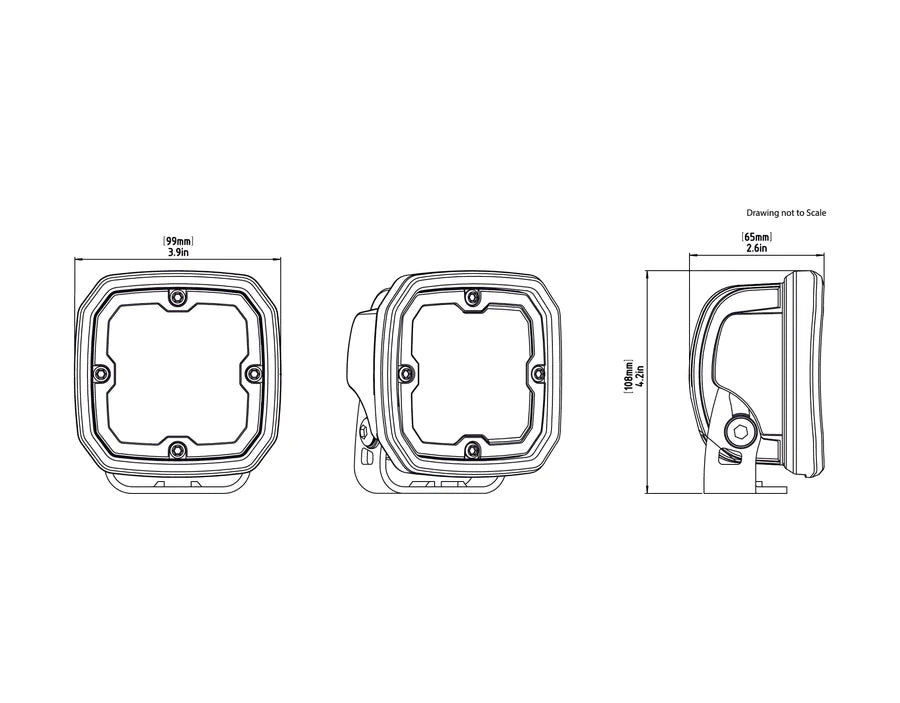

Pod Size: 3.9” Square x 2.6” Deep
IP67 Waterproof & Submersible

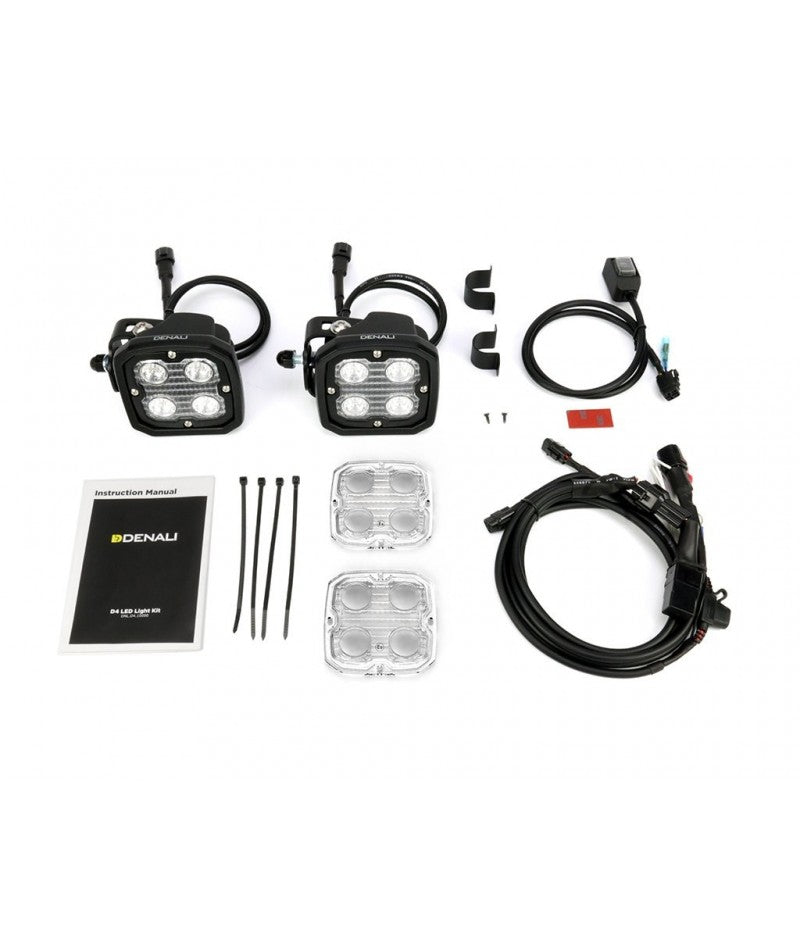

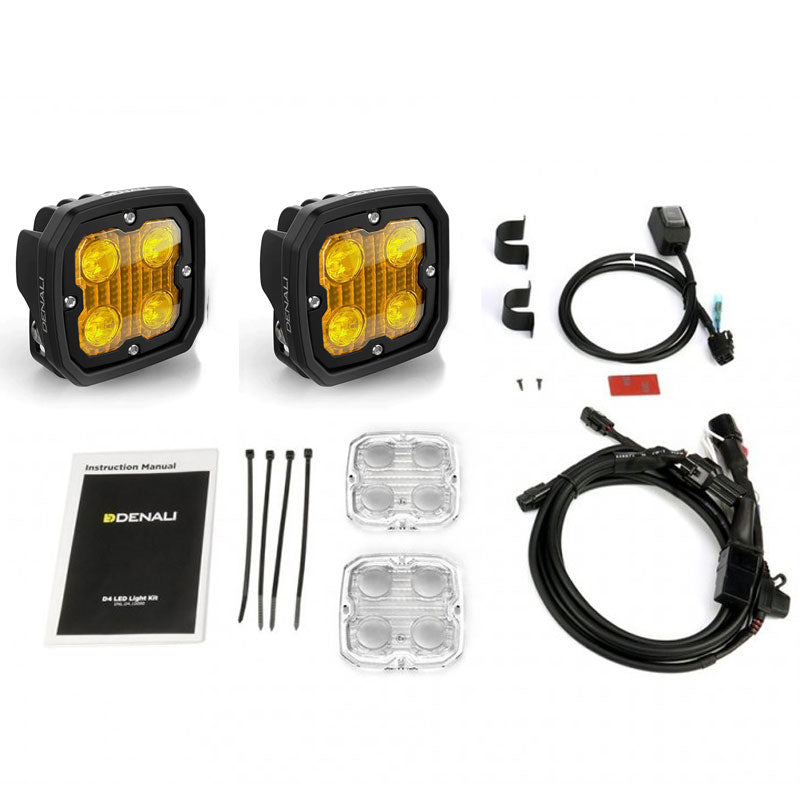

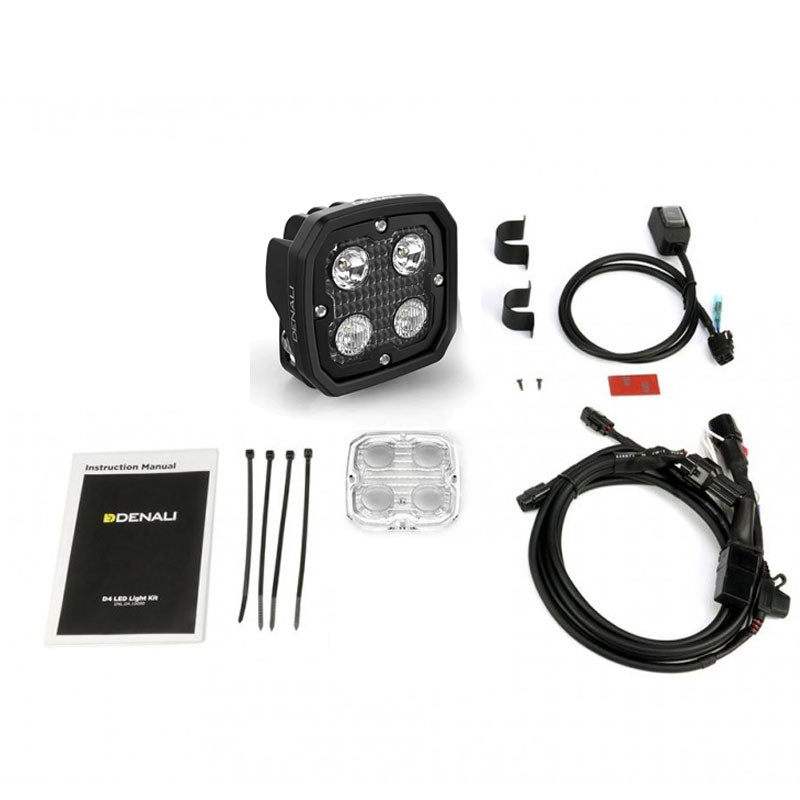

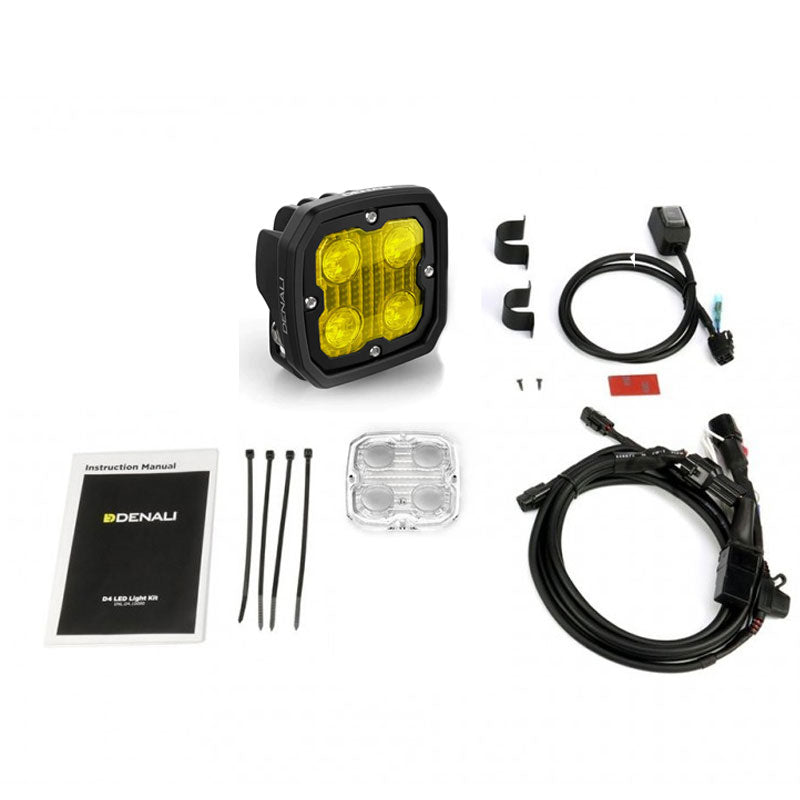

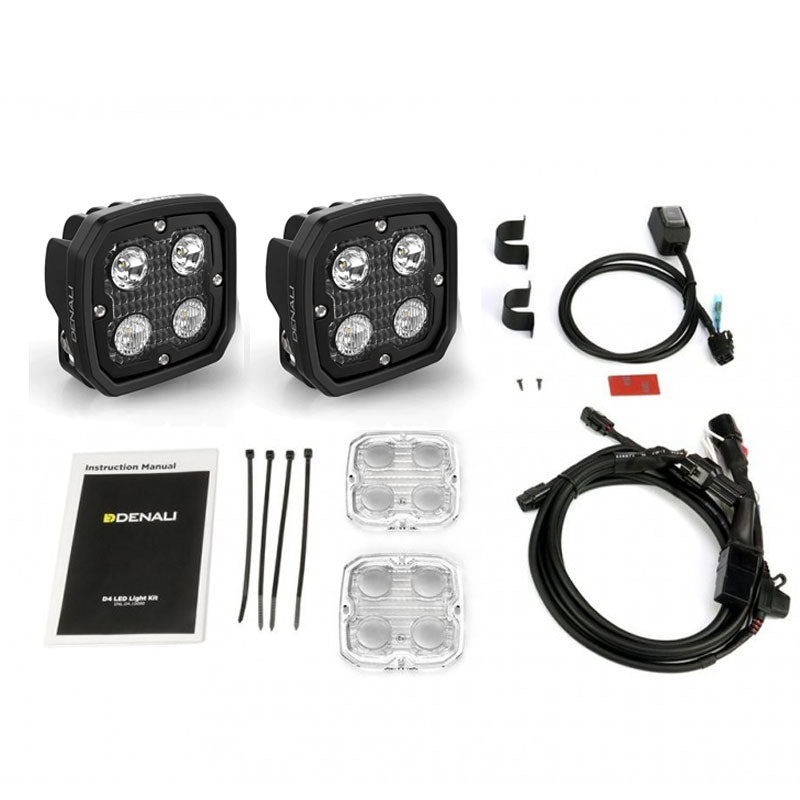

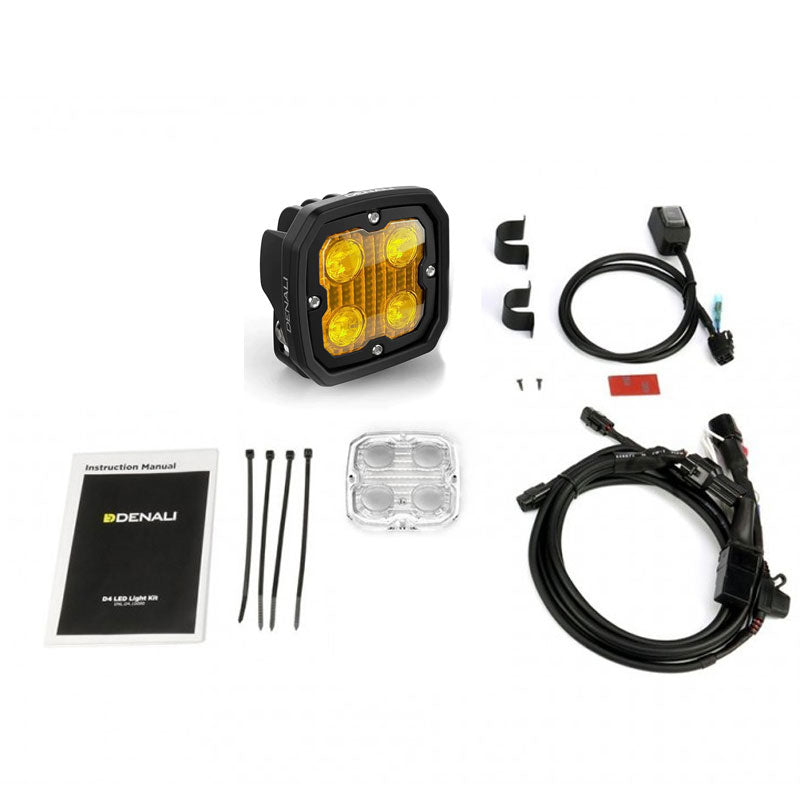

What’s In The Box?

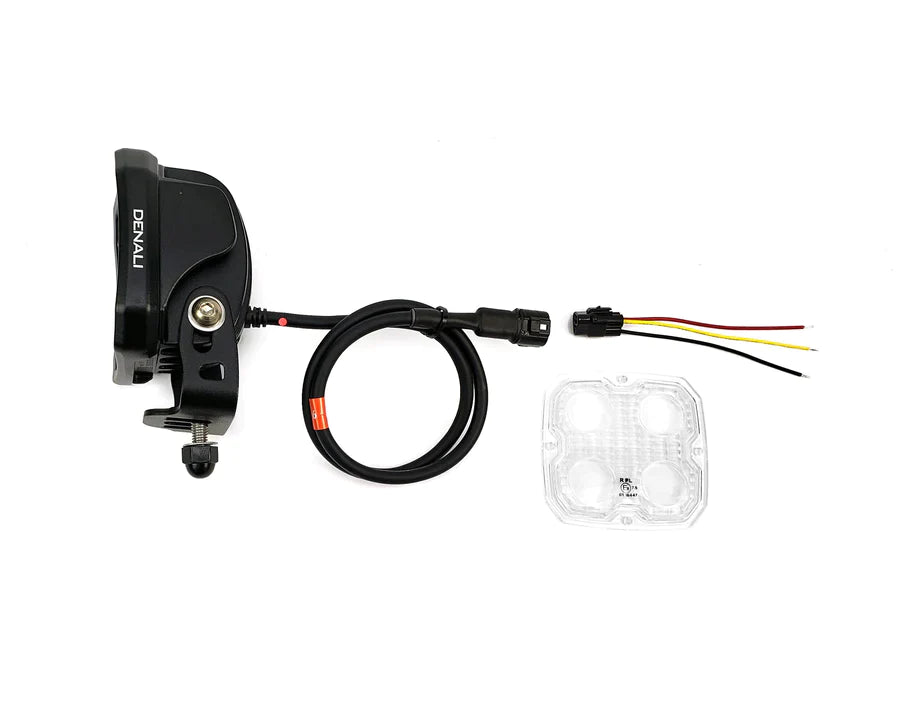

D4 Lights (Per Light):
(1x) LED Light Pods
(1x) True-Hybrid™ Lenses (Installed)
(1x) E-Mark Approved Spot Lenses (included)
(1x) Hinge Mounts with M8 Stainless Steel Hardware
Lens Kit (Per Light)

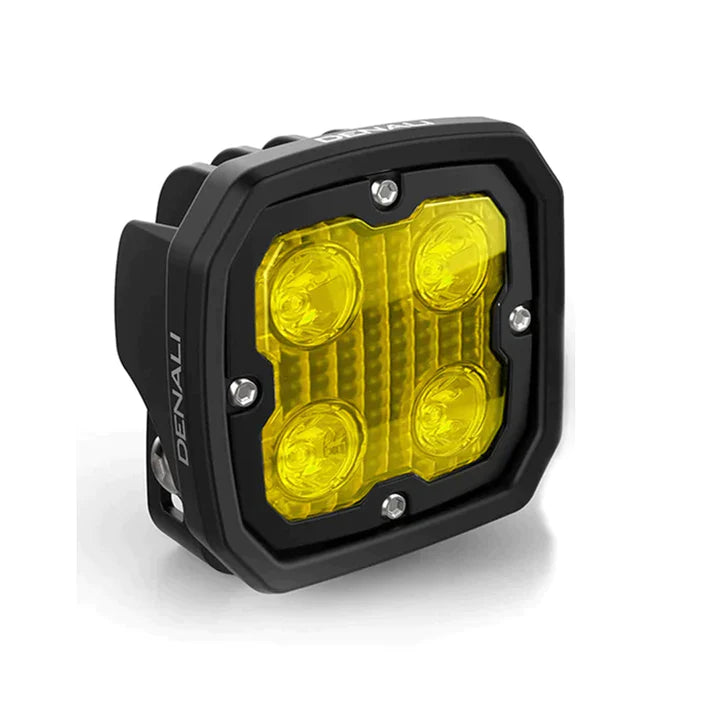

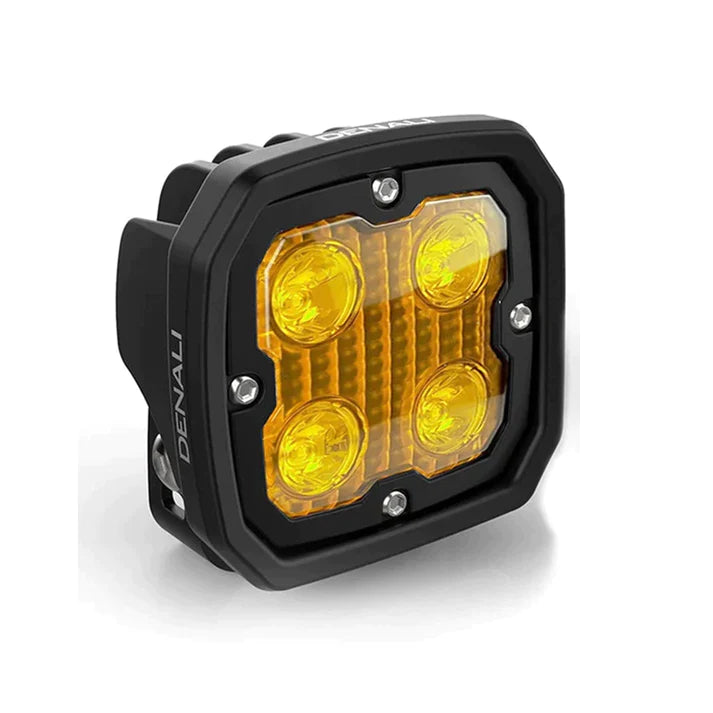

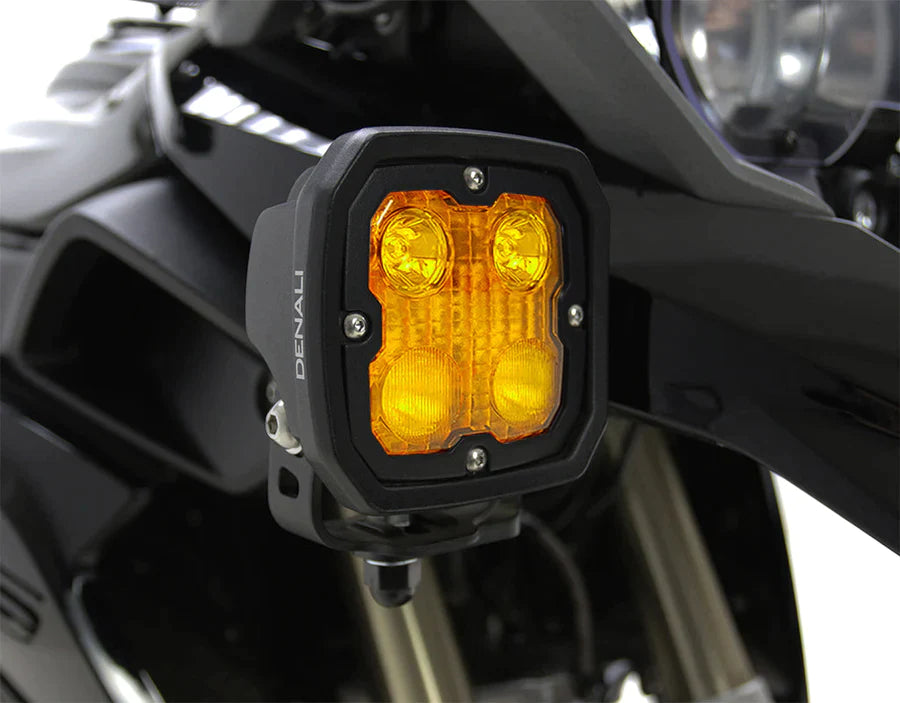

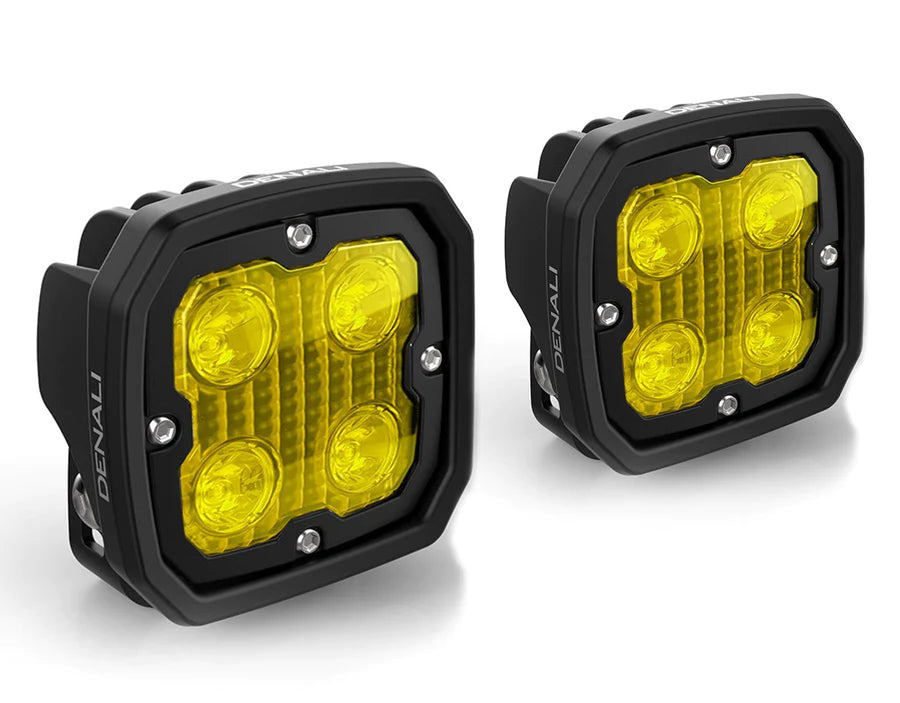

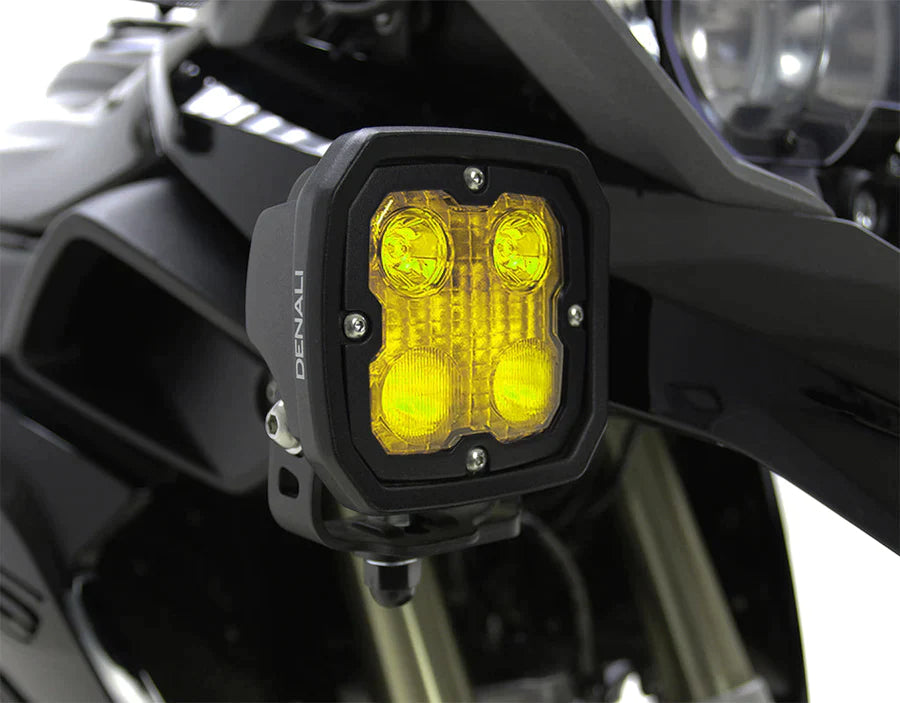

Amber or Selective Yellow Lens
D4 Universal Wiring Kit:
NOTE: Not required when buying with a CANsmart Controller
