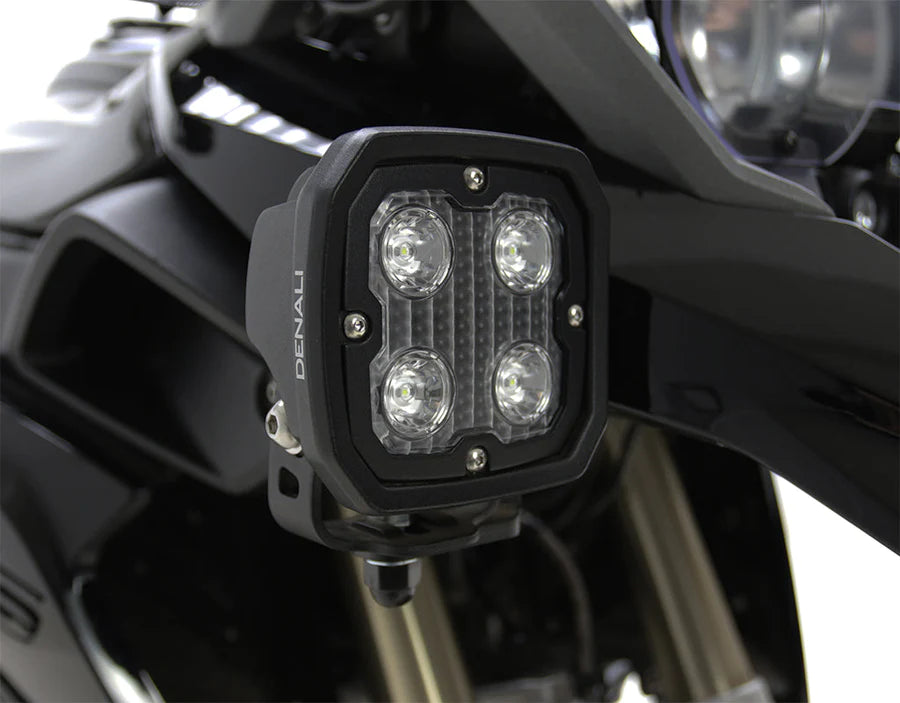

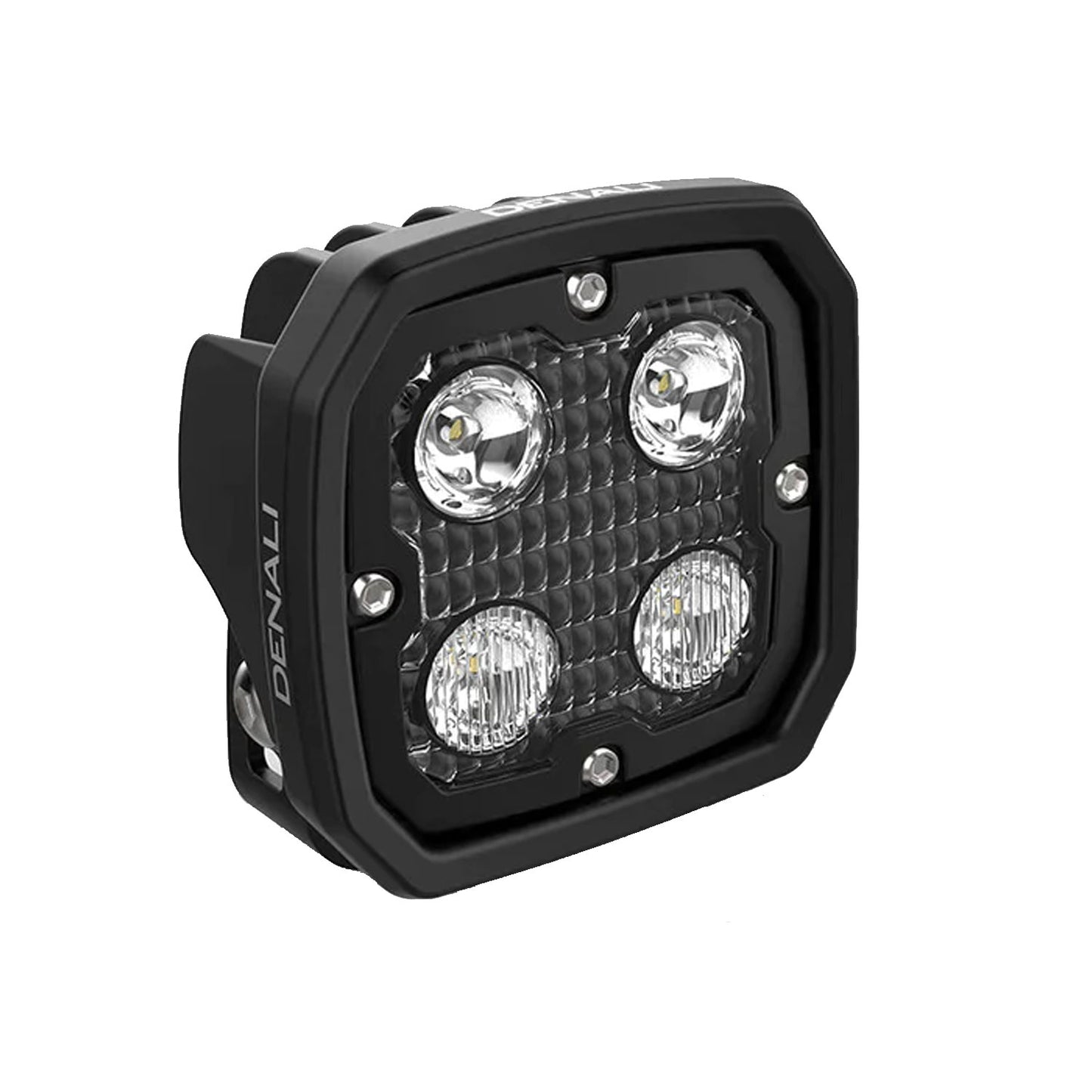

DENALI D4 is a beast. It is DENALI’s most powerful light packing a punch of 8750 lumens in a pair of aggressively styled housings. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included pair of spot lenses throws a massive beam of light 800 feet and carries an official E-Mark certification.

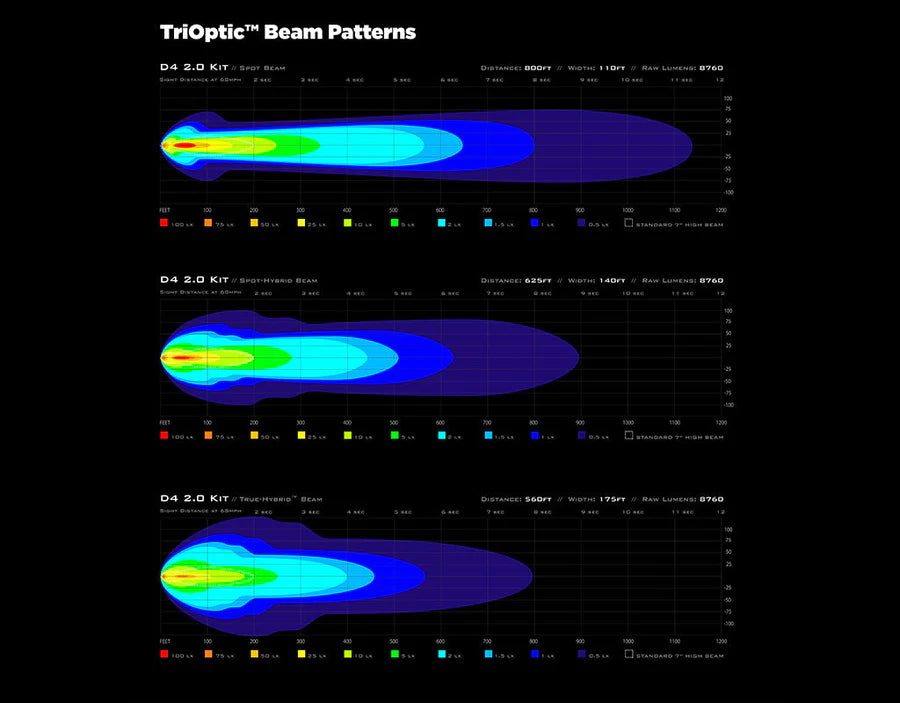

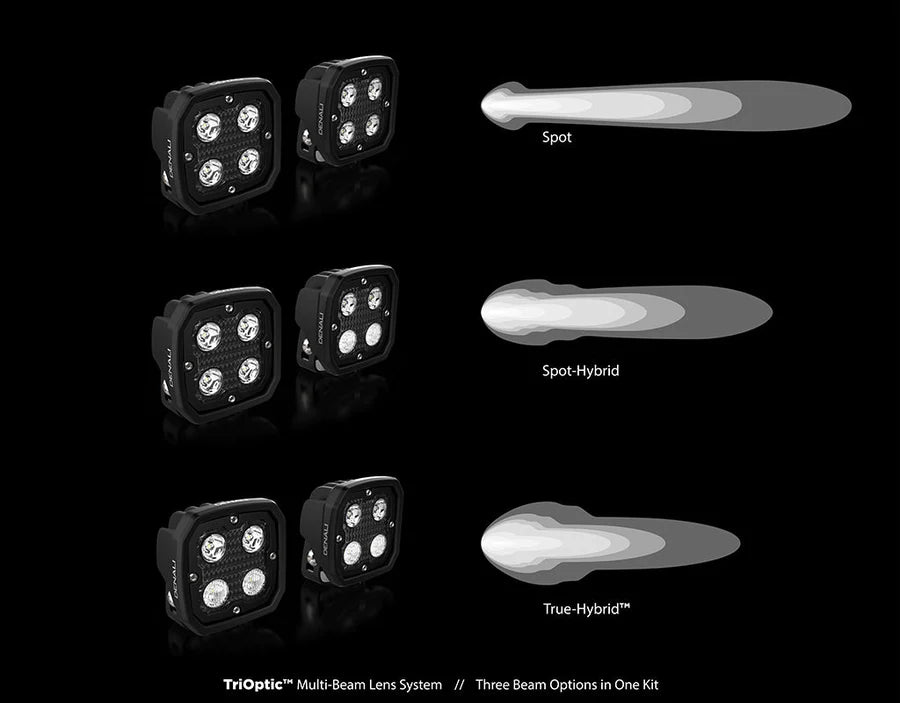

Our TriOptic™ Lens System means that each light pod has a factory-installed clear spot lens but also includes an optional flood lens to enable three different beam options when used as a pair (Spot, Flood, or Hybrid).

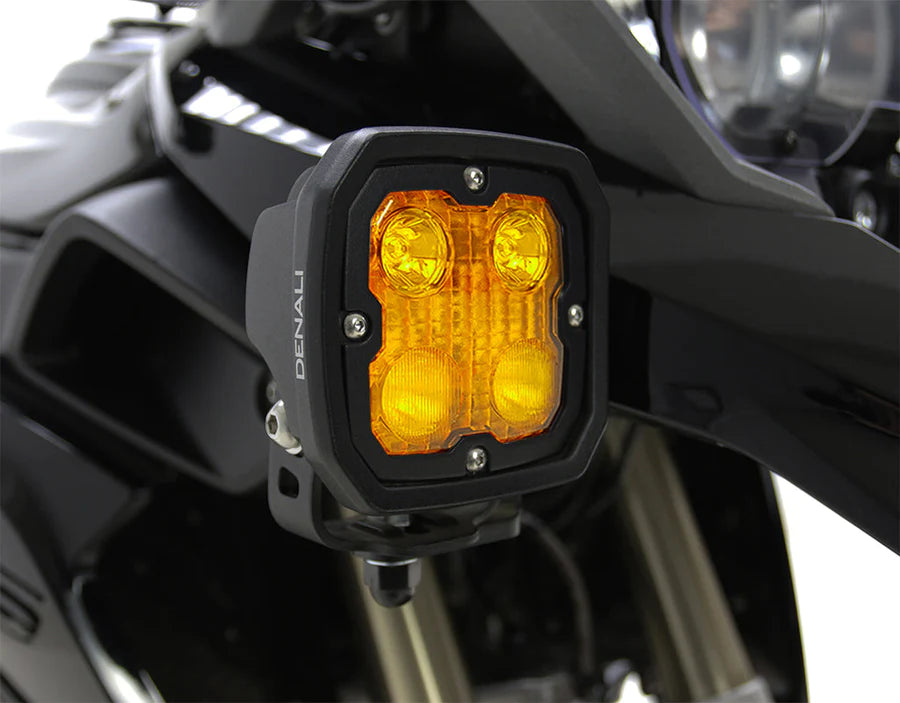

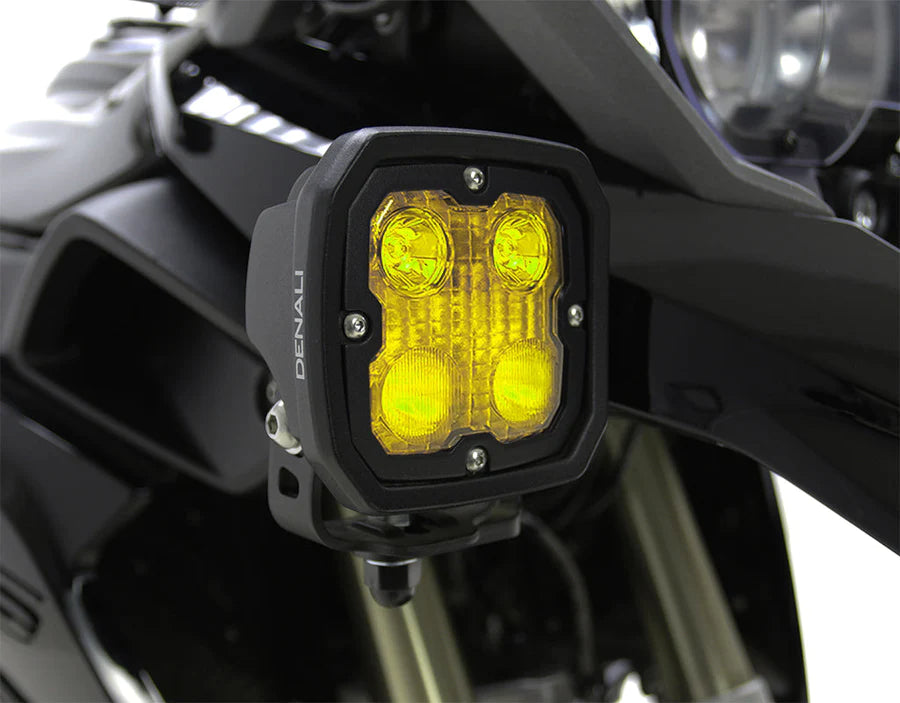

Choose to add a set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!
More Flexibility, Maximum Control
DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
Last but not least we also make a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.
D4 Light Pod Features
High-Intensity Series Cree LEDs outputting 8760 lumens per pair
TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one pair of pods
DataDim™ equipped light pods enable plug-and-play connection, and integrated dimming, with DENALI dimming and lighting controllers.
DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminium bezels
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

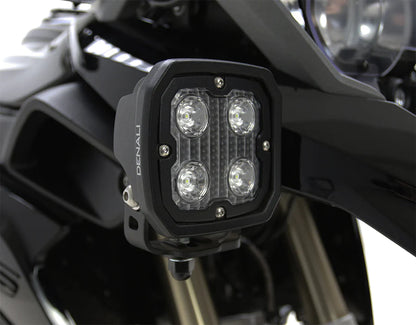

Low profile mounting bracket with stainless steel hardware included
Additional pair of E-Mark Approved spot lenses included

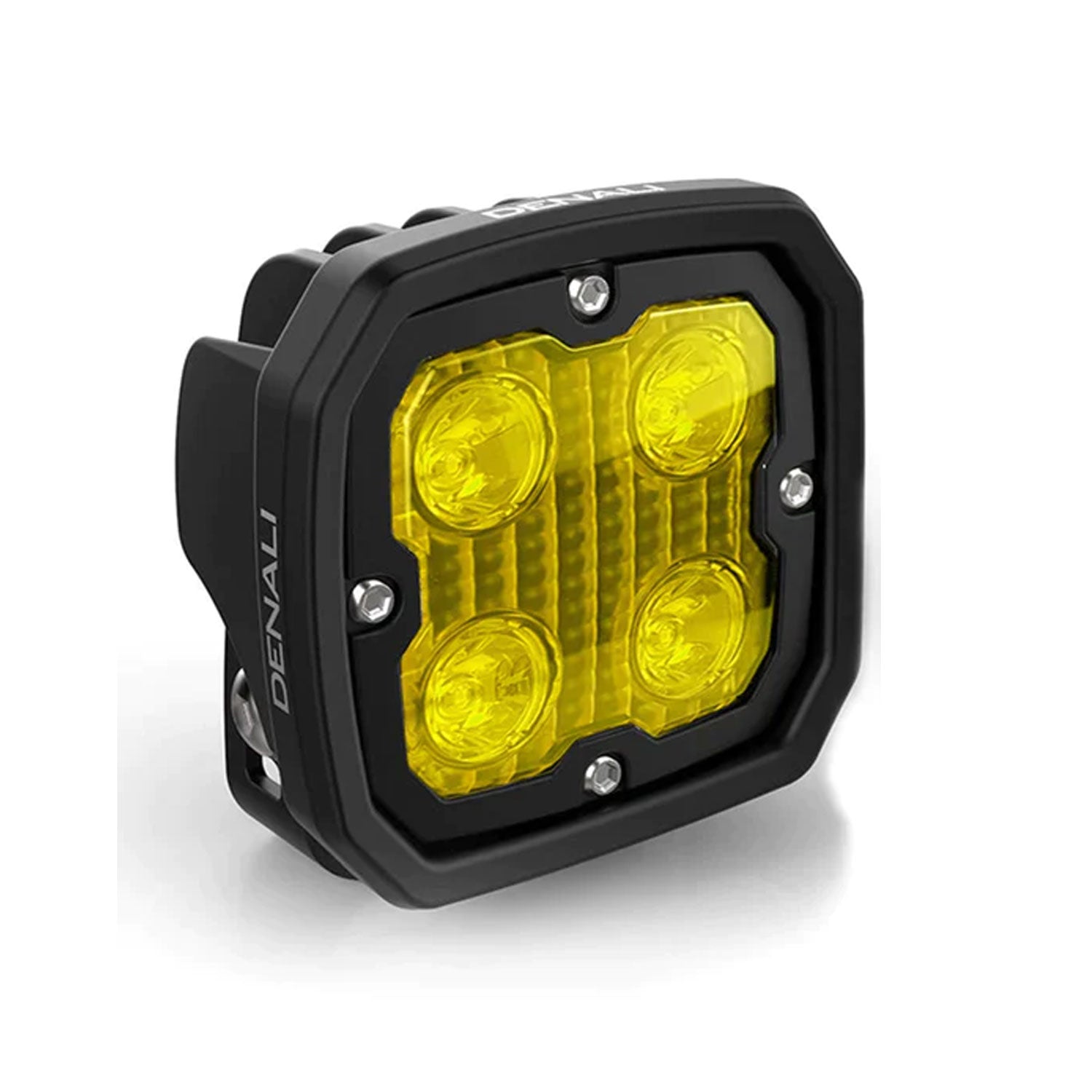

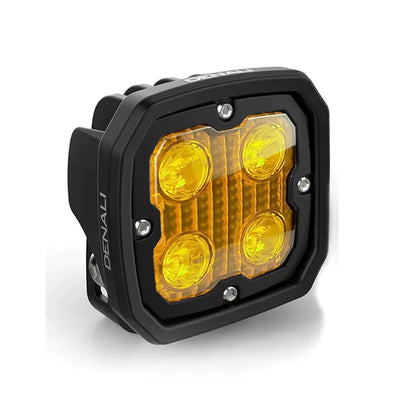

Interchangeable lenses available in Clear, Amber, and Selective Yellow
D4 Pod Specs (based on a pair)
LED’s: (8x) 10 Watt Cree XPL HI
Power Draw: 6.6 Amps
Beam Distance (Spot): 800 Feet
Beam Width (Spot): 110 Feet
Raw Lumens: 8760
Intensity: Single Intensity Harness
DataDim™ Compatible: Yes
Operating Voltage: 12 VDC

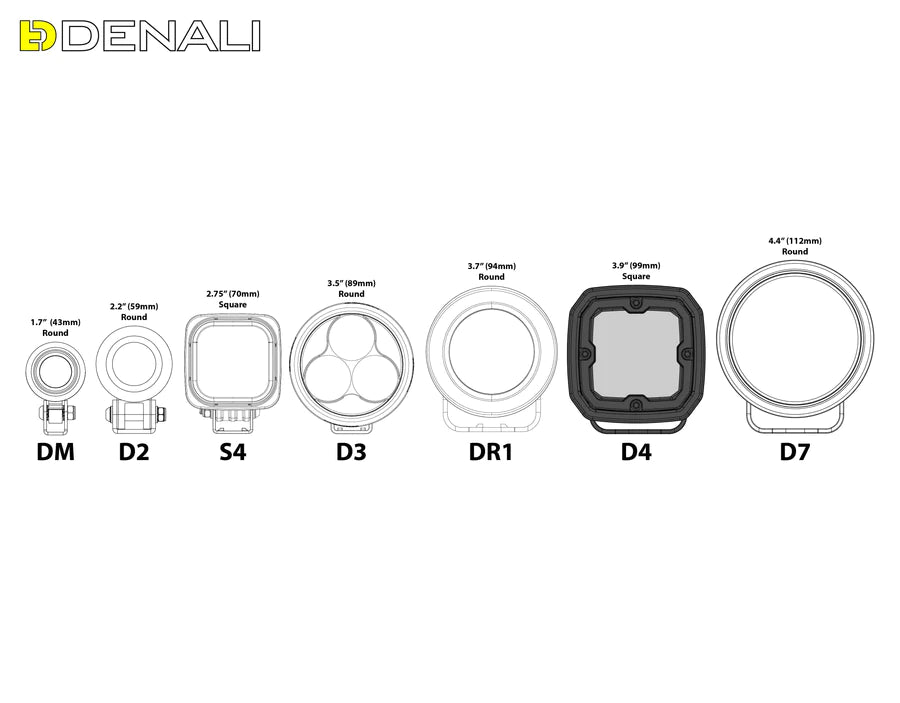

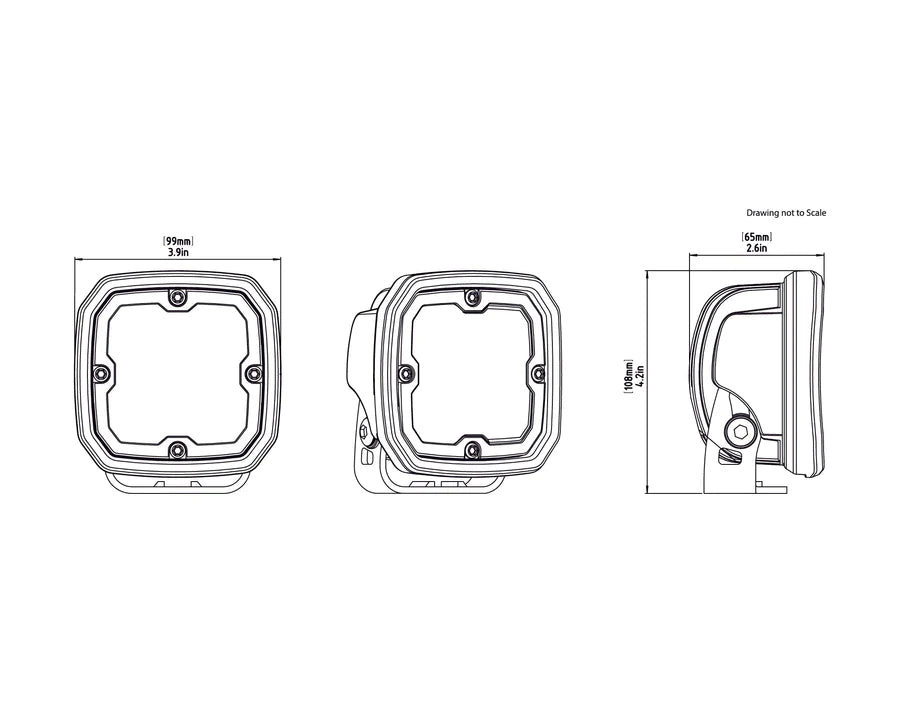

Pod Size: 3.9” Square x 2.6” Deep (each)
Pod Weight: 1.55 lbs (each)
IP67 Waterproof & Submersible
E Mark Approved Spot Lenses

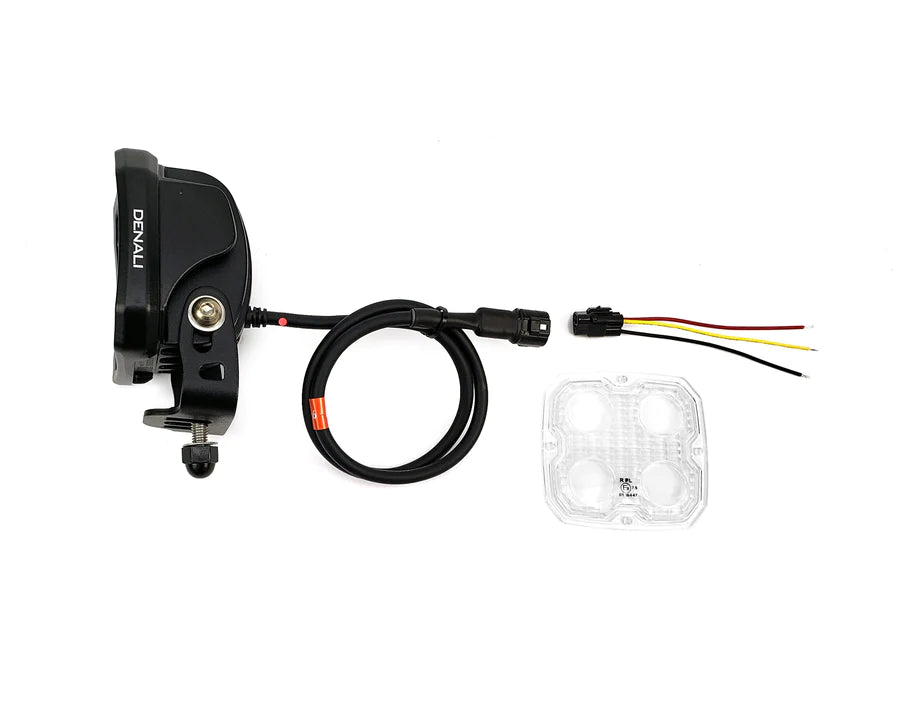

What’s Included?
(1x) LED Light Pod
(1x) Hybrid Lens (Installed)
(1x) Spot Lens
(1x) M8 Mounting Hinge with Stainless Steel Mounting Hardware
